Bosch Professional GRL 400 H Rotation Laser Measuring Tool Inc LR1 Receiver, BT 170 HD Tripod & GR 240 Rod

Bosch GRL 400 H Rotation Laser inc LR1 Receiver, BT 170 HD Tripod & GR 240 Rod 061599403U

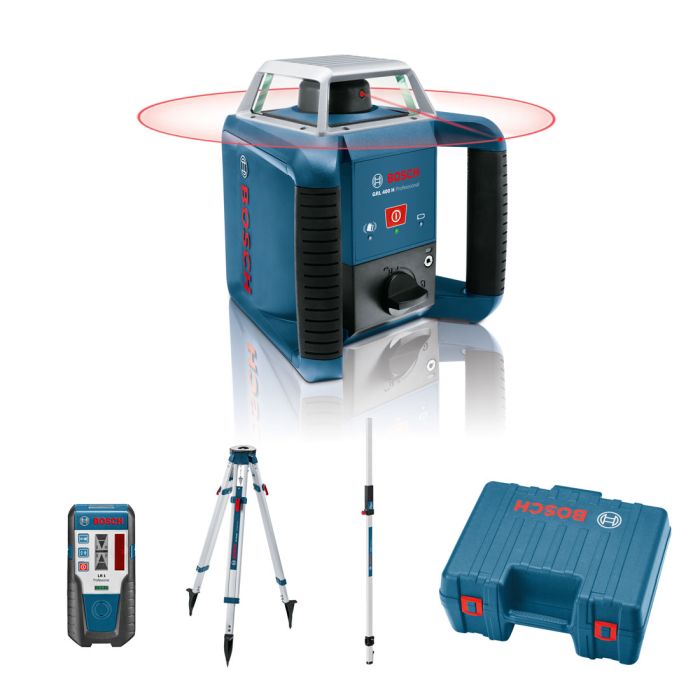

The easy-to-operate rotation laser for outdoor use. This kit includes the GRL 400 H Rotation Laser, the LR 1 Laser Receiver, a BT 170 HD Aluminium Tripod and the GR 240 Measuring Rod.

GRL 400 H Outdoor Rotation Laser

FEATURES

• Long range of up to 400 m
• Robust housing and IP56 dust and splash protection
• Easy handling: one-button operation and self-explanatory display
• Self-levelling of 8% (± 5°) in the horizontal mode
• Automatic shock warning function prevents levelling errors in the event of vibrations or shocks

SPECIFICATION

• Laser Diode: 635 nm, < 1 mW
• Operating Temperature: -10 – 50 °C
• Storage Temperature: -20 – 70 °C
• Laser Class: 2
• Working Range (With Receiver): 400 m (Diameter)
• Working Range (Without Receiver): 20 m (Diameter)
• Accuracy Horizontal: ± 0.08 mm/m
• Self-Levelling Range: ± 8% (± 5°)
• Levelling Time: 15 s
• Dust & Splash Protection: IP 56
• Rotation Speed: 600 rpm
• Operating Time Max: Rechargeable Batteries (NiMH) 30 h
• Tripod Thread: 5/8" x 11
• Colour of Laser Line: Red

LR 1 Laser Receiver

FEATURES

• Top-mounted magnets for better fixing
• Two measuring accuracy settings
• Three levels of speaker volume
• Universal bracket for mounting on measuring rods
• Magnets for ceiling applications
• Robust rubber-coated housing
• Automatic shutdown after 5–8 minutes
• Handy receiver for indoor and outdoor use for ranges of up to 200 m in combination with GRL 400 H Professional and GRL 300 HV Professional Rotation Lasers
• Visual and audible alignment of the laser beam plane
• Dust and splash protection (IP65)

SPECIFICATION

• Dust & Splash Protection: IP 65
• Measuring Accuracy (Fine/Rough): ± 1 mm/± 3 mm
• Power Supply: 1x 9 V 6LR61 Block (Supplied)
• Weight, Approx.: 250 g
• Length: 145 mm
• Width: 75 mm
• Height: 30 mm

BT 170 HD Building Tripod

FEATURES

• Quick locking due to Quick-Clamp-System
• High resistance to environmental influences
• 5/8" thread adaptor
• Other Features
• Appropriate for GPL 5 C; GPL 5; GPL 3; GLL 2; GLL 3-80 P; GLL 2-80 P; GRL 400 H; GRL 300 HVG; GRL 300 HV; BL 200 GC; GOL 20 G/D; GOL 26 G/D Professional
• With adaptor: GLL 2-50; GLM 50; GLM 80; GLM 150; GLM 250 VF Professional

SPECIFICATION

• Work Height: 107 – 165 cm
• Weight. Approx.: 5.5 kg

GR 240 Measuring Rod

FEATURES

• Suitable for GLL 2-15; GLL 3-50; GLL 3-80 P; GLL 2-80 P; GLL 2-50; GRL 400 H; GRL 300 HV; GRL 300 HVG; GRL 500 H/HV; GOL 20 G/D; GOL 26 G/D Professional
• Robust, high-quality aluminium profile
• Extendible up to 2.4 m
• For use even under extreme conditions

SPECIFICATION

• Length: 2.4 m
• Sections: 2
• Units of Measurement: m/cm
• Material: Aluminium
