Bosch Professional GRL 400 H & LR1 Receiver Rotation Laser Measuring Tool

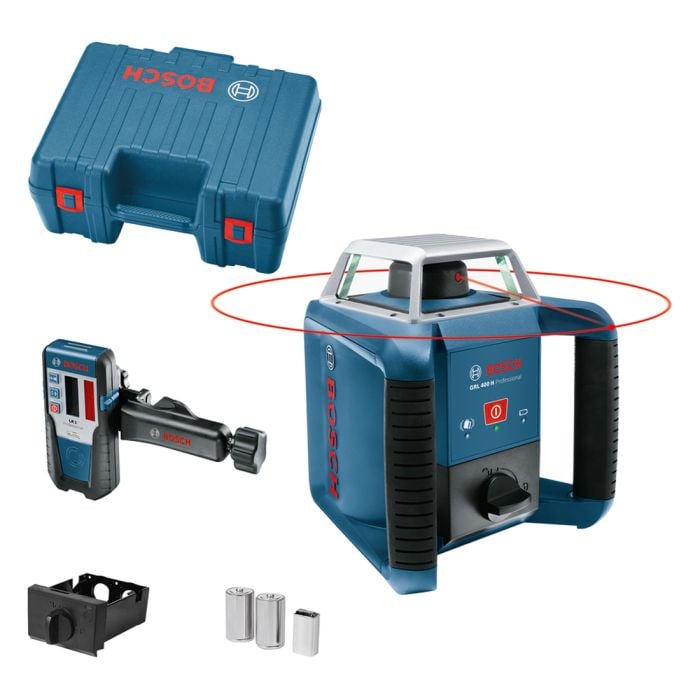

Bosch GRL 400 H Rotation Laser inc LR1 Receiver In Carry Case 0601061800

The easy-to-operate rotation laser for outdoor use.

GRL 400 H Outdoor Rotation Laser

FEATURES

• Long range of up to 400 m
• Robust housing and IP56 dust and splash protection
• Easy handling: one-button operation and self-explanatory display
• Self-levelling of 8% (± 5°) in the horizontal mode
• Automatic shock warning function prevents levelling errors in the event of vibrations or shocks

SPECIFICATION

• Laser Diode: 635 nm, < 1 mW
• Operating Temperature: -10 – 50 °C
• Storage Temperature: -20 – 70 °C
• Laser Class: 2
• Working Range (With Receiver): 400 m (Diameter)
• Working Range (Without Receiver): 20 m (Diameter)
• Accuracy: ± 0.08 mm/m
• Self-Levelling Range: ± 8% (± 5°)
• Levelling Time: 15 s
• Dust & Splash Protection: IP 56
• Rotation Speed: 600 rpm
• Operating Time Max: Rechargeable Batteries (NiMH) 30 h
• Tripod Thread: 5/8" x 11
• Colour of Laser Line: Red

LR 1 Laser Receiver

FEATURES

• Top-mounted magnets for better fixing
• Two measuring accuracy settings
• Three levels of speaker volume
• Universal bracket for mounting on measuring rods
• Magnets for ceiling applications
• Robust rubber-coated housing
• Automatic shutdown after 5–8 minutes
• Handy receiver for indoor and outdoor use for ranges of up to 200 m
• Visual and audible alignment of the laser beam plane
• Dust and splash protection (IP65)

SPECIFICATION

• Dust & Splash Protection: IP 65
• Measuring Accuracy (Fine/Rough): ± 1 mm/± 3 mm
• Power Supply: 1x 9 V 6LR61 Block (Supplied)
• Weight, Approx.: 250 g
• Length: 145 mm
• Width: 75 mm
• Height: 30 mm
