Bosch Professional GRL 300 HV Rotation Laser Measuring Tool Inc LR1, Mount, Remote, Rod & Tripod

Bosch GRL 300 HV Rotation Laser inc LR1, Mount, Remote, Rod & Tripod

Easy handling with horizontal and vertical self-levelling

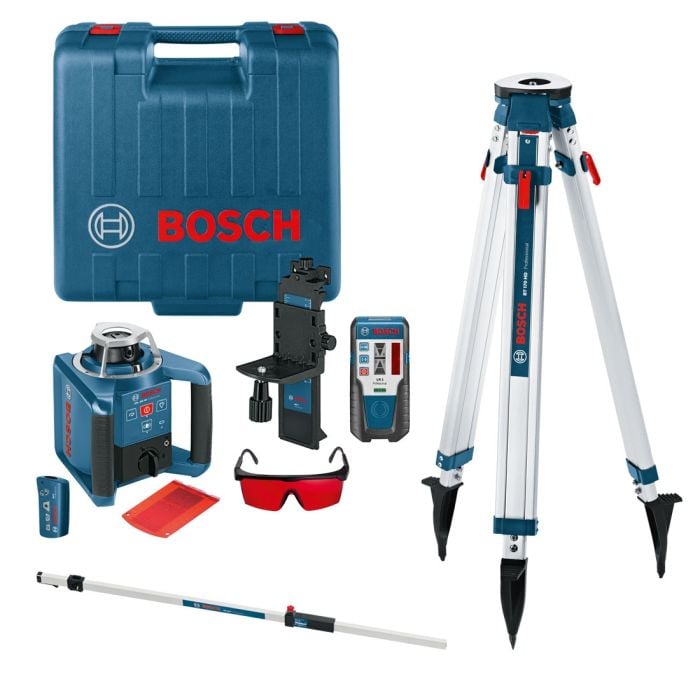

This Bosch GRL 300 HV is an easy-to-operate rotation laser for outdoor use. This kit includes the GRL 300 HV Rotation Laser, the LR1 Laser Receiver, a RC1 Remote, a BT170 HD Aluminium Tripod and the GR240 Measuring Rod.

GRL 300 H Outdoor Rotation Laser

FEATURES

• Easy to operate thanks to one button per function
• Self-explanatory display
• Easy to set up in both the horizontal and vertical modes due to automatic self-levelling of 8% (± 5°)
• The shock warning function, which can be switched on and off, prevents levelling errors in the event of shocks or vibrations

SPECIFICATION

• Laser Diode: 635 nm, < 1 mW
• Laser Class: 3R
• Levelling Accuracy: ± 0.1 mm/m
• Self-Levelling Range: ± 5° (8%)
• Rotation Speed: 150, 300, 600 rpm
• Power Supply: 1 x 9v 6LR61 Block
• Power Supply: 1 x 1.5v LR6 (AA)
• Power Supply: 2 x 1.5v LR6 (D)
• Operating Time Max: Rechargeable Batteries (NiMH) 30 h
• Operating Time Max: Alkaline 50 h
• Tripod Thread: 5/8"
• Weight Approx: 1.8 kg
• Length: 190 mm
• Width: 180 mm
• Height: 170 mm
• Colour of Laser Line: Red

LR 1 Laser Receiver

FEATURES

• Top-mounted magnets for better fixing
• Two measuring accuracy settings
• Three levels of speaker volume
• Universal bracket for mounting on measuring rods
• Magnets for ceiling applications
• Robust rubber-coated housing
• Automatic shutdown after 5–8 minutes
• Handy receiver for indoor and outdoor use for ranges of up to 200 m in combination with GRL 400 H Professional, and GRL 300 HV Professional Rotation Lasers
• Visual and audible alignment of the laser beam plane

SPECIFICATION

• Dust & Splash Protection: IP 65
• Measuring Accuracy (Fine/Rough): ± 1 mm/± 3 mm
• Power Supply: 1x 9v 6LR61 Block (Supplied)
• Weight, Approx: 250 g
• Length: 145 mm
• Width: 75 mm
• Height: 30 mm

BT 170 HD Building Tripod

FEATURES

• Quick locking due to Quick-Clamp-System
• High resistance to environmental influences
• 5/8" Thread Adaptor
• Appropriate for GPL 5 C; GPL 5; GPL 3; GLL 2; GLL 3-80 P; GLL 2-80 P; GRL 400 H; GRL 300 HVG; GRL 300 HV; BL 200 GC; GOL 20 G/D; GOL 26 G/D Professional
• With adaptor: GLL 2-50; GLM 50; GLM 80; GLM 150; GLM 250 VF Professional

SPECIFICATION

• Work Height: 107 – 165 cm
• Weight Approx: 5.5 kg
• GR 240 Measuring Rod

GR 240 Measuring Rod

FEATURES

• Suitable for GLL 2-15; GLL 3-50; GLL 3-80 P; GLL 2-80 P; GLL 2-50; GRL 400 H; GRL 300 HV; GRL 300 HVG; GRL 500 H/HV; GOL 20 G/D; GOL 26 G/D Professional
• Robust, high-quality aluminium profile
• Extendable up to 2.4 m
• For use even under extreme conditions

SPECIFICATION

• Length: 2.4 m
• Sections: 2
• Units of Measurement: m/cm
• Material: Aluminium

RC1 Remote

FEATURES

• Handy remote control with a range of 30 m
• For all functions including alignment of the laser line of the rotation laser in vertical mode
• Appropriate for GRL 300 HV Professional and GRL 300 HVG Professional
