Bosch Professional GPL 5 Self-Levelling 5 Point Laser Measuring Tool 0601066200
Bosch Professional GPL 5 Self-Levelling 5 Point Laser Measuring Tool 0601066200

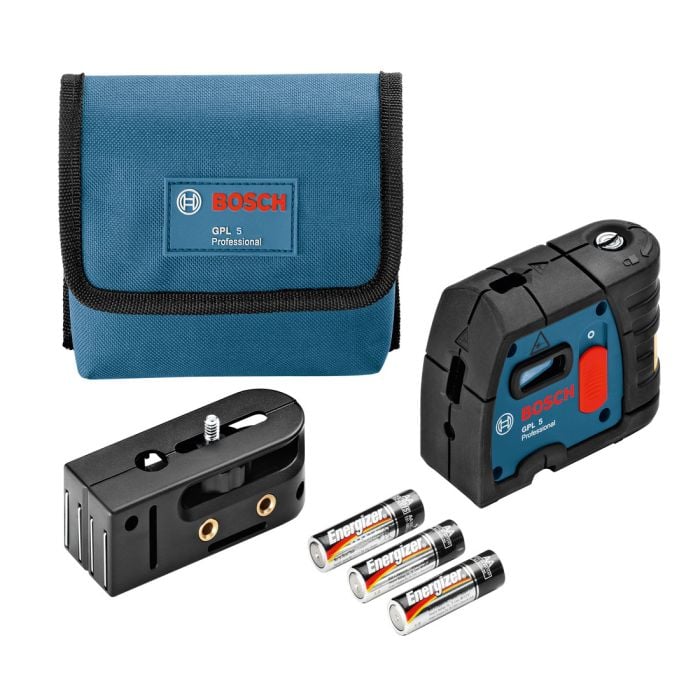

what's in the box
- 1x GPL 5 Point Alignment Laser
- 1x Multifunctional Mount (1618C00465)
- 1x Protective Case
- 3x 1.5v (AA) Batteries
- Supplied In: Manufacturers Packaging
Notes From PTW Expert
One-person does the job of two people using manual plumb bob
Overview
Bosch GPL 5 Self-Levelling 5 Point Laser 0601066200
Very compact 5-point laser – for easy transfer of right angles
The Bosch GPL 5, five-point laser has points at up/down, front and sides for plumb, level, align and 90° square measurements. It has a high accuracy of ± 0.3 mm/m. It uses a 'Smart Pendulum System' that self-levels and also indicates out-of-level condition. It's compact design allows the unit to go anywhere and can be used in almost any interior application. The multifunctional mount supplied positions the tool with magnets, strap or threaded mounts (1/4", 5/8").
FEATURES
- Wide variety of fixing possibilities using the universal mount
- Working range of up to 30 m
- High levelling accuracy of ± 0.3 mm/m
- Dust and splash protection: IP5X
- Self-levelling 5-point horizontal and plumb laser for indoor work
- For precise transfer of right angles and reference points from the ground to the ceiling
- Easy handling due to its very compact size
SPECIFICATION
- Power Supply: 3x 1.5V LR6 AA Batteries (Supplied)
- Laser Diode: 635 nm, < 1 mW
- Projection: 5 Points
- Operating Temperature: -10 – 40 °C
- Storage Temperature: -20 – 70 °C
- Laser Class: 2
- Working Range: 30 m
- Accuracy: ± 0.3 mm/m
- Self-Levelling Range: ± 5° Longitudinal Axis, ± 3° Traverse Axis
- Levelling Time: 4 s
- Dust & Splash Protection: IP 5X
- Beam Diameter: 5 mm on Tool
- Operating Time (max.): 24 h
- Tripod Thread: 1/4", 5/8"
- Projection: 5 points
- Weight, Approx.: 0.25 kg
- Length: 104 mm
- Width: 40 mm
- Height: 80 mm
