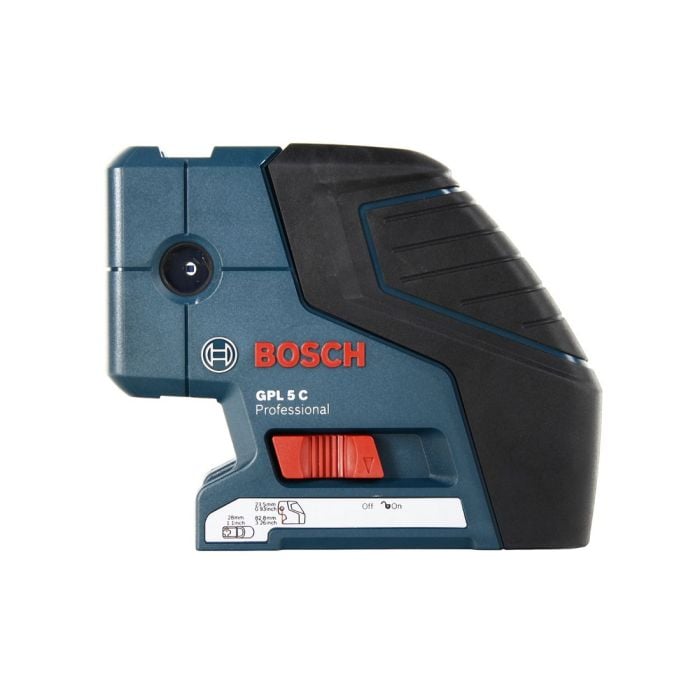

Bosch Professional GPL 5 C Point Laser Measuring Tool

Bosch Point Laser GPL 5 C Professional

Transferring and aligning in record-breaking time

FEATURES

• Self-levelling within 4 seconds up to 4° incline, acoustic warning (can be switched off) if out-of-level
• Easy to use due to self-explanatory operating switch for selecting different projection patterns
• Robust for use on the construction site due to dust and splash protection of IP54

SPECIFICATION

• Laser Diode: 635 nm, < 1 mW
• Laser Class: 2
• Working Range: up to 30 m
• Levelling Accuracy: ± 0.2 mm/m Horizontal
• Levelling Accuracy: ± 0.25 mm/m Vertical
• Working Range of Laser Points Max.: 30 m Horizontal
• Working Range of Laser Points Max.: 10 m (Top)/5 m (Bottom) Vertical
• Working Range of Laser Crosses: 7 m (Top)
• Working Range of Laser Crosses: 3 m (Bottom)
• Angular Accuracy (Between 0 – 90° Angle): ± 0,4 mm/m
• Self-Levelling Range: Up to ± 4°
• Dust and Splash Protection: IP 54
• Power Supply: 4 x 1.5 V LR6 (AA)
• Operating Time Max.: 20 h (in 3-point mode)
• Operating Time Max.: 9 h (in 5-point and cross-line mode)
• Tripod Thread: 1/4", 5/8"
• Weight Approx.: 0,6 kg
• Length: 146 mm
• Width: 57 mm
• Height: 119 mm
