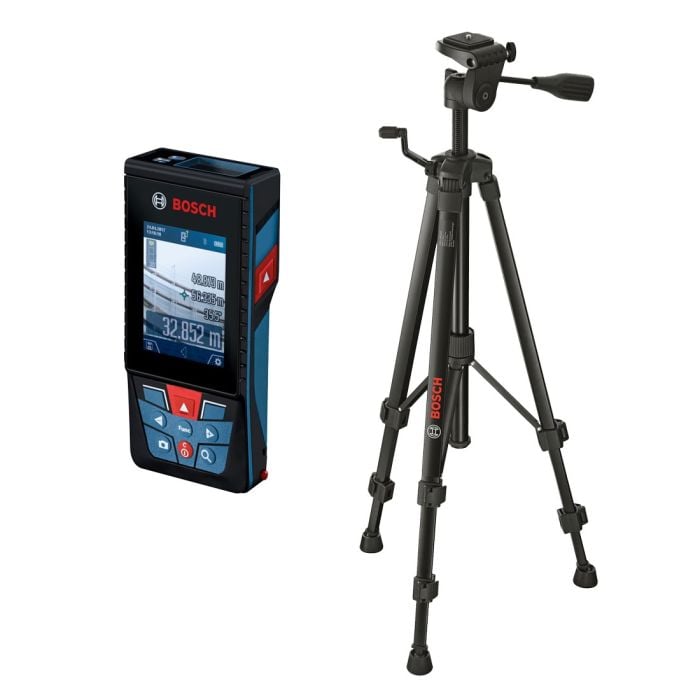

Bosch GLM 120 C Professional Laser Measure with Integrated Camera inc BT 150 Tripod Bundle 0601072F71
The measurement of lengths, areas, volumes and inclines will be even easier and more efficient thanks to the new GLM 120 C Professional Laser Measure from Bosch. It is the first laser measure from Bosch to come with an integrated camera. Use its 5MP camera as a viewfinder to find and zoom in on targets, overcomes visual issues relating to lighting, long distance, complex surroundings and other factors. The laser measuring range is up to 120 metres and it works to an accuracy of +/- 1.5 millimetres.
The device’s large colour screen (2.8 inches), with flip display, has a familiar smartphone look. Readability from all angles is possible thanks to IPS (in-plane switching) technology, while optical bonding minimises the effects of condensation or reflected sunlight when viewing the screen outdoors.The camera works with a three-stage zoom, saves up to 700 images and shows the last 50 images, along with the measured values, in the display. This means that each individual measurement can be assigned. The ability to control this laser measure remotely through your smartphone or tablet, from a range of about 10 metres, eliminates any need for assistance from a second person. A timer function adds further convenience.
Optimised workflows due to connection via Bluetooth - Data is synchronised between the GLM Measure & Document app (Measuring Master) and the GLM 120 C Professional by means of the integrated Bluetooth interface in the laser measure device. Measuring results can therefore be transferred quickly and easily to a tablet PC and processed using the app's versatile functions. This eliminates the risk of errors resulting from manual transfer. Digitisation of the floor plans enables project data to be captured faster and information to be exchanged more easily, which saves workmates, bosses and contractors precious time. The GLM floor plan app is also fully functional without a connection to the GLM 120 C Professional. The only difference is that a measured value will then not be automatically assigned to the selected object and transferred into the measurement chain, rather it has to be entered via the user interface of the tablet. The smart solution for measuring and documenting in all surroundings – even outdoors.
FEATURES
Direct digital transfer of measuring results
Simple exchange and smart documentation of measured values thanks to Measuring Master app
Create digital floor plans, import and edit existing floor plans, and export the result also using the Measuring Master app
Measuring range of 0,08 – 120m
Maximum freedom due to lithium-ion technology - includes USB charge cable and UK USB plug
Comfortable measurement in every situation due to side trigger
Automatic pin detection to avoid measurement errors
Bluetooth smart (Low Energy)
Camera has a resolution of five megapixels and upto 700 storage of images
TrackMyTools Module integrated
Better visibility of the result due to illuminated display
Memory storage 50 (measurements & pictures)
1/4" fitting for use with tripods (such as included BT 150 Professional)
SPECIFICATION
Measurement Accuracy, Typical: +/- 1.5mm
Measurement Range of Incline Measurement: 0 - 360° (4 x 90°)
Measurement Time, Typical: < 0.5s
Units of Measurement: mm, cm, m, ft, inch
Digital ViewFinder: 5MP
Tilt Sensor Range: 360° (4x90°)
Angle Measurement Accuracy: ± 0,2°
Lowest Indication Number: 0,5mm
Laser Class & Type: Class 2, 650nm, <1mW
Battery Type: 3,6V Lithium-Ion (3120 mAh)
Dust & Splash Water Protection: IP 54
Working Temperature/Storage Temperature –10 °C...+45 °C/ –20 °C...+70 °C
