Bosch Professional GLL 3-80 Self-Levelling Multi Line Laser Measuring Tool In Carry Case
Supersedes GLL3-80P
Bosch Professional GLL 3-80 Self-Levelling Multi Line Laser Measuring Tool In Carry Case

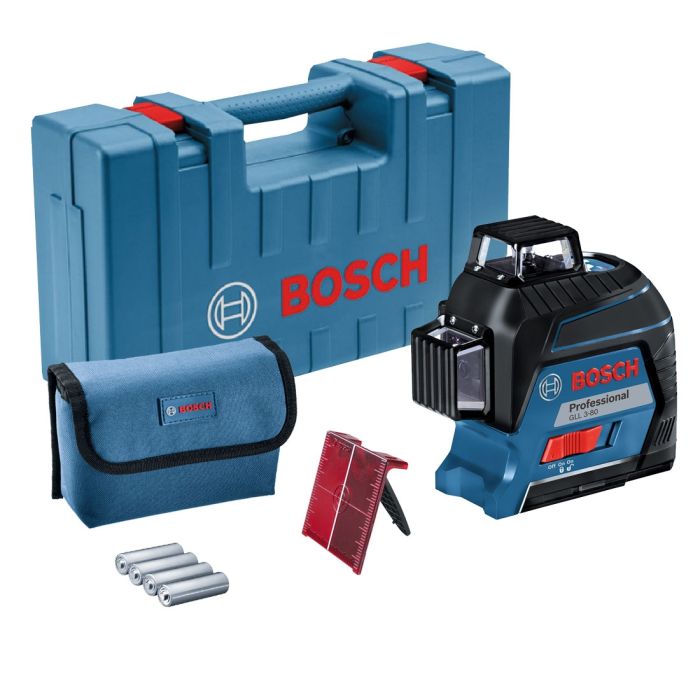

what's in the box
- 1x GLL 3-80 Multi Line Laser
- 4x 1.5 V AA Batteries
- 1x Laser Target Plate
- 1x Protective Pouch
- 1x Carry Case
Notes From PTW Expert
The GLL 3-80 Professional Plane Laser beeps and the laser line flashes quickly to indicate unintentional inclinations of more than 40°. The user can fix the pendulum lock if inclined lines are required. Then laser lines can be projected at any desired inclination
Overview
Bosch GLL 3-80 Self-Levelling Multi Line Laser in Carry Case 0601063S00
The compact Multi Line Laser for all indoor applications
The GLL 380 offers visibility on a new level in 3 x 360°. It's self-levelling (4° in 4 sec), very precise (± 0.3 mm/m) and has a range of up to 80 m when used in conjunction with an LR6 receiver (sold separately).
FEATURES
- One horizontal and 2 vertical 360° lines enable many new applications for simultaneous marking, alignment and levelling indoors
- Self-levelling (4° in 4 sec), very precise (± 0.3 mm/m) and range of up to 80 m with receiver
- Incorporating both a 5/8" and a 1/4" thread for working with any type of tripod & clicks easily onto rails thanks to two magnetic stops
- Depending on the work needed the user can operate the mode switch to select between only a horizontal or vertical laser line or with both laser lines together
- Compact, easy-to-handle and extremely robust (IP54)
- High visibility of the laser lines with a working range of 30 m (without receiver)
- Working range of 80 m with the LR 6 Professional receiver (sold separately)
- Pendulum lock ensures safe transport
- Easy to operate using intuitive user interface
SPECIFICATION
- Laser Diode: Line: 630 - 650 Nm, < 10mw
- Operating Temperature: -10 to 40 °c
- Storage Temperature: -20 to 70 °c
- Laser Class: 2
- Working Range: 30 m
- Working Range With Receiver: 120 m (Diameter)
- Working Range Without Receiver: 30 m (Radius)
- Accuracy: ± 0.3 mm/m
- Self-levelling Range: ± 4°
- Levelling Time: 4 S
- Dust and Splash Protection: IP 54
- Power Supply: 4 X 1.5 V LR6 (AA)
- Operating Time (Max.): 4 H (4x AA) in 3-line Mode
- Tripod Thread: 1/4", 5/8"
- Weight, Approx.: 0.82 Kg
- Colour of Laser Line: Red
- Projection: 3 x 360° Line
