Bosch Professional GCM 18V-305 GDC BITURBO Brushless 305mm / 12" Mitre Saw Body Only

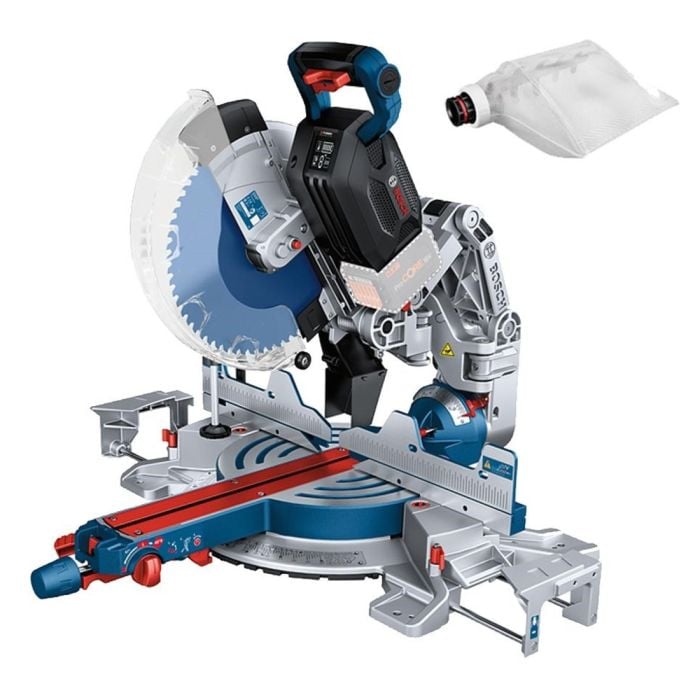

Bosch GCM 18V-305 GDC Brushless BITURBO 305mm Mitre Saw Body Only 0601B43000

Combining impressive cutting performance with full cordless flexibility.

This GCM 18V-305 GDC Professional BITURBO cordless mitre saw from Bosch offers a powerful cutting depth of up to 120mm. It's BITURBO brushless motor requires a ProCORE 18v battery (sold separately) which deliveres cordless power that is equal to a 2000 W corded mitre saw - but with all the mobility and flexibility that cordless tools offer.

There's a HMI as well as connectivity for a quick battery status check, and speed selections including ECO mode. Safety is paramount with the design of this tool, which features a tool-less saw blade change, upfront bevel control and a motor break. Ideal for compound cutting as well as a broad range of materials, the saw can be mounted on multiple Bosch GTA stands.

Whilst reaching maximum performance when used with ProCORE 18v batteries, this 18V-305 mitre saw is also compatible with all Bosch 18v battery packs.

This tool is supplied body only - batteries and chargers sold separately.

CONTENTS

• GCM 18V-305 Mitre Saw (0601B43040)
• Cordless Saw Blade - Wood - 305 x 2.2 x 30mm (2608644648)
• Dust Bag (1600A01ZE5)
• Insert Plate (1609B02375)
• Clamp (1609B02585)
• Internal Hexagon (1609B00256)
• Bluetooth Low Energy Module - GCY 42 Professional (1600A016NH)

FEATURES

• Space-saving guide arm for safe and convenient operation
• BITURBO brushless motor
• LED light
• Precision laser
• Soft start
• Intelligent brake system
• Tool-less saw blade change
• Upfront bevel control
• Motor brake
• Speed selection including ECO mode
• HMI and connectivity for battery status check

SPECIFICATION

• Voltage: 18v
• Cutting Capacity - 0°: 104 x 341mm
• Cutting Capacity - 0° With Spacer (Max. Vertical): 120mm x 250mm
• Cutting Capacity - 0° With Spacer (Max. Horizontal): 45mm x 400mm
• Cutting Capacity - 45° Mitre: 60mm x 240mm
• Cutting Capacity - 45° Bevel: 40mm x 341mm
• Mitre Setting: 52° L / 60° R
• Bevel Setting: 47° L / 47° R
• Tool Dimensions (WxLxH)L 565mm x 630mm x 790mm
• No Load Speed: 2,550 - 4,000rpm
• Saw Blade Diameter: 305mm
• Saw Blade Bore Diameter: 30mm
• Weight: 26.9kg
• Packaging Dimensions (WxLxH): 565mm x 785mm x 580mm

NOISE & VIBRATION

• Sound Pressure Level: 93 dB(A)
• Sound Power Level: 106 dB(A)
• Uncertainty K: 3 dB
