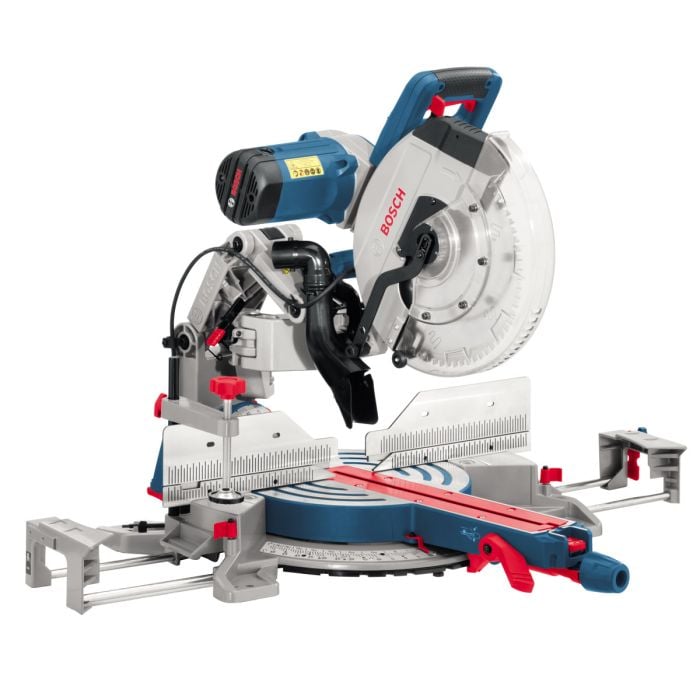

Bosch Professional GCM 12 GDL 305mm / 12" Double Bevel Glide Mitre Saw

Bosch GCM 12 GDL 12" Dual Bevel Glide Mitre Saw

With Evolutionary Performance and Revolutionary design, the Bosch GCM12GDL mitre saw has a gliding head rather than the usual sliding head and provides double bevel with huge vertical and horizontal cutting capacity

BOSCH GCM 12 GDL FEATURES

• Extreme cutting smoothness because of innovative and maintenance free gliding system
• Integrated dual line laser supports accurate cuts
• High vertical and horizontal cutting capacity
• Top Precision Best for Wood - saw blade part of standard delivery
• Quality components and effective dust control make seeing the cut line easy every time
• Robust construction, i.e. does not need to be adjusted during regular use
• Kerf adjustment (width of lines) according to thickness of sawblade used
• Eliminates rails to save up to 30 cm workspace; work right up against a wall in hallways or workshop
• All mitre and bevel adjustments are from the front of the tool, there is no need to reach behind the saw
• Efficient dust extraction due to optimised suction spouts
• Pull-out material supports integrated on the right and left with integrated length stop
• Integrated carrying handle for easy transport

BOSCH GCM 12 GDL AXIAL GLIDE SYSTEM

• Smooth 'Glide Action' - Impermeable sealed bearings provide infinitely smooth and effortless blade travel, no matter the application, material or work environment, for the life of the tool
• Precise geometrical interaction with system components including long-life high precision machined fences, detents, mitre/bevel settings, etc
• 'Zero-Maintenance' Guarantee - Robust cast aluminum arm and sealed bearings will never require maintenance

BOSGCM12GDL2P SPECIFICATION

• Power (W): 2000
• Motor Speed: 3,800
• Max. Miter angle: (L/R) 52° / 60°
• Max. Bevel Angle: (L/R) 4r 14r
• Laser: Yes
• Trenchcutting: Yes
• Softstart: Yes
• Variable Speed Control: Yes
• Motor break: Yes
• Pull system: Arial Glide System Rails
• 0° Mitre / 0° Bevel: 104/110 x 341 mm* (*110mm with spacers)
• 45° Mitre / 0° Bevel: 104/110 x 240 mm* (*110mm with spacers)
• 0° Mitre / 45° Bevel 51 x 341 mm
• 45° Mitre / 45° Bevel 51 x 240 mm
• Sawblade diameter: 305
• Number of teeth: 72
• Dimensions (L D H): 790/565/610 mm
• Weight (kg): 32.1

Available in 110v & 240v
