This heavy duty SDS max combi hammer drill with powerful universal hammer for rapid drilling and chiselling has been built with heavy duty jobs in mind. With best drilling performance thanks to optimised hammer mechanism technology and high-performance motor. Low-vibration impact mechanism for reduced fatigue. Long lifetime due to use of high-quality materials and components made of fibreglass reinforced plastic, aluminium and precision parts made of steel.
FEATURES
Overload clutch
Cut-off carbon brushes
Variable auxiliary handle
Good handling, also for left handers
Optimised dust seal in toolholder as well as new ventilation grilles ensure long operational life
SDS-max toolholder for safe and fast locking; compact transfer of torque; with integrated dust protection
Constant Electronic with setting wheel for preselecting speed, impact rate or impact force
Variable chisel fitting in 12 angle positions
SPECIFICATION
Rated power input: 1.500 W
Impact energy: 5 – 18 J
Power output: 920 W
Impact energy (chiselling): 5 – 18 J
Impact rate at rated speed: 1.100 – 2.250 rpm
Rated speed: 120 – 250 rpm
Rated torque: 200 Nm
Weight: 11.1 kg
Length: 595 mm
Height: 280 mm
Drilling diameter in concrete with flute drill bits: 12 - 52 mm
Drilling diameter in concrete with core cutters: 40 - 150 mm
Drilling diameter in concrete with breakthrough drill bits: 45 - 80 mm
Recommended drilling range: 30 - 52 mm
Material removal rate in medium concrete (approx).: 225 kg/h
NOISE & VIBRATION
Hammer drilling in concrete:
Vibration emission value ah: 24 m/s²
Uncertainty K: 1.5 m/s²
Chiselling:
Vibration emission value ah: 15 m/s²
Uncertainty K 1.5 m/s²
What's in the box

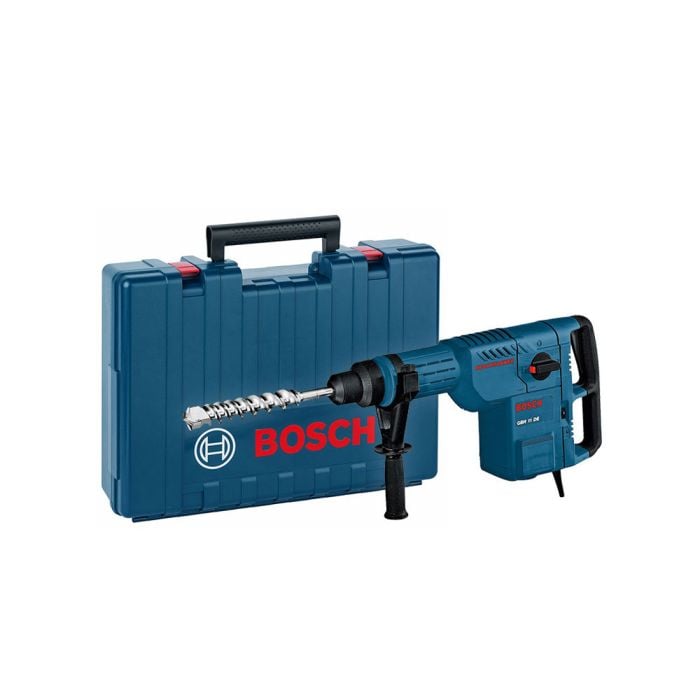

1x GBH 11 DE Combi-Hammer
1x Carry Case (2605438322)
1x Auxiliary Handle (2602025086)
1x Machine Cloth (1619200444)
1x Grease Tube (1615430005)
Notes From PTW Expert
Service display indicates in good time that a carbon replacement is due
