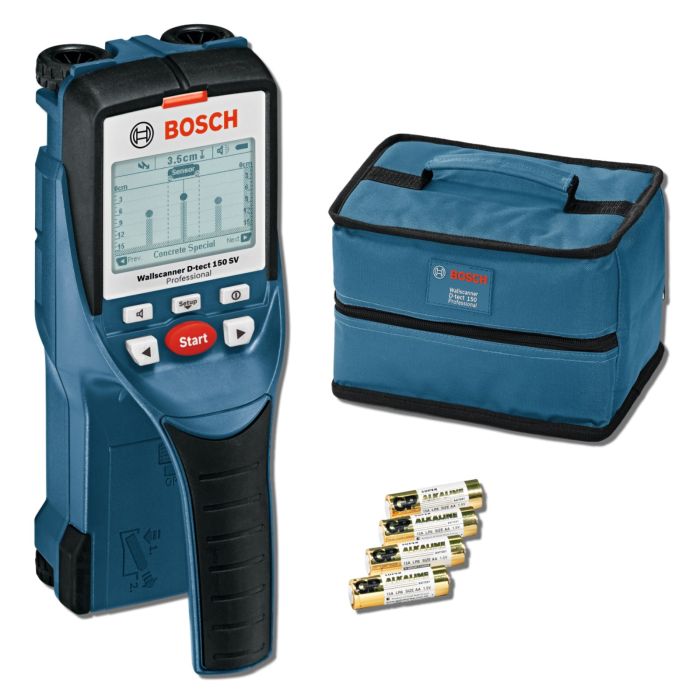

Bosch Professional D-TECT 150 SV Digital Wall Scanner Measuring Tool with Signal View

Bosch D-TECT 150 SV Digital Wall Scanner with Signal View 0601010008

The specialist for finding objects in difficult conditions

FEATURES

• Unique: reliable detection of objects in damp concrete
• Millimetre-accurate detection of ferrous/non-ferrous metals' live cables' wooden studs and plastic pipes
• Digital display of material properties
• The actual object depth is displayed - making it easy to determine the actual level of concrete cover
• The Signal View/SV displays objects that are very close together even more precisely
• The specialist for finding reinforcements with three operating modes for concrete
• Ruler View: measuring distances between objects. millimetre-accurate marking on the wall
• Requires no calibration

SPECIFICATION

• Detectable Materials: Plastic Pipes, Ferrous Metals, Non-Ferrous Metals, Wooden Studs, Live Cables
• Max Detection Depth: 150 mm
• Detection Depth Steel Max: 150 mm
• Detection Depth. Copper Max: 150 mm
• Detection Depth of Live Cables Max: 60 mm
• Detection Depth of Wooden Substructures Max: 40 mm
• Accuracy: ± 5 mm
• Automatic Deactivation Facility Approx: 5 min
• Power Supply: 4x 1.5 V LR6 (AA) Batteries
• Weight Approx: 0.7 kg
• Length: 220 mm
• Width: 97 mm
• Height: 120 mm
• Dust and Splash Guard: IP 54
• Additional Function: Signal View. Reliable Measurements in Damp Concrete
