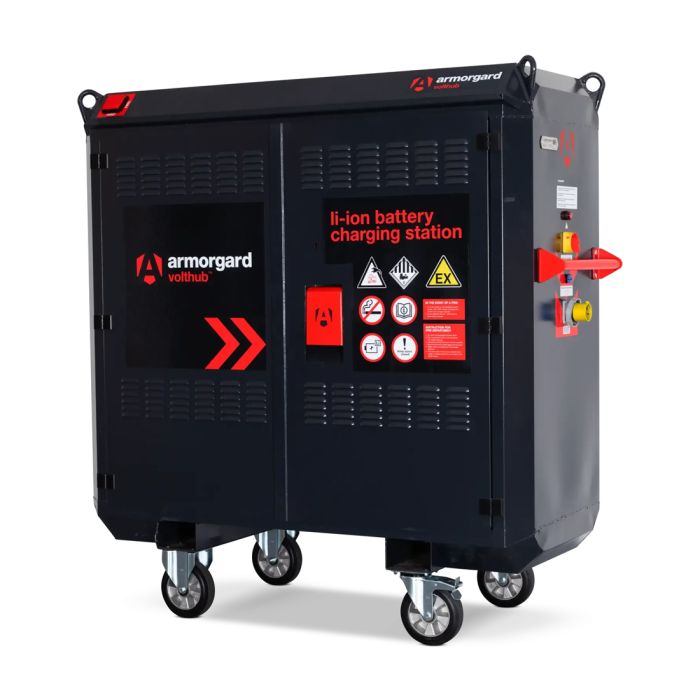

Armorgard VH16-110 VoltHub Li-Ion Battery Charging Station 110v

Armorgard VH16-110 VoltHub Li-Ion Battery Charging Station 110v

As the fastest-growing fire risk in the UK, ensuring the safe charging and storage of lithium-ion batteries is crucial. The popularity of VoltHub VH16-240 meant that the VH16-110 version was born, designed to address this need for sites operating on 110V power.

The IP55 rated VoltHub VH16-110 maintains all the proactive and reactive features of the original VoltHub, ensuring that Li-Ion batteries are kept charging at optimal temperatures. In the unlikely event of a fire, the device’s reactive features are activated. Designed for 110V power, it is ideal for use in the heart of sites.

Equipped with forced ventilation, a thermostatic heater, early smoke and gas detection, and a humidity sensor, the unit can detect early signs of fire. The automatic and localised fire suppression system significantly reduces risks, especially when the unit is situated centrally on a site, containing any fire and preventing its spread.

For ease of mobility, the unit includes crane lifting eyes, forklift pockets, and castors. As a single plug-and-play unit, it is easy to set up and move around.

The VoltHub VH16-110 features 16 RCD trip-protected double gang sockets, allowing up to 32 batteries to be charged simultaneously. If a fault occurs in one compartment, power is isolated to that compartment alone, allowing other batteries to continue charging without disruption. The unit also features larger lockers to accommodate larger batteries.

FEATURES

• Power cut-off when the internal temperature reaches 60℃ or more
• Forced ventilation to keep air flowing through the VoltHub
• Thermostatic heater keeps the temperature at optimum levels
• Isolator switch for power to the VoltHub
• The fire suppression and alert systems will still operate without mains power
• Visual and audible alarm when there is a fire
• Fire suppression system for responding to li-ion battery fires
• GSM phone and text alert when there is a fire
• Early warning detection
• Humidity sensor
• Universal communications port designed to integrate seamlessly into your site’s fire control system. Compatible with: WES, ProLink, Cygnus systems and more…

SPECIFICATION

• Dimensions (W x D x H): 1770mm x 750mm x 1820mm
• Internal Dimensions: Small locker: 260x355x260 Large locker: 475x355x260
• Weight: 334kg
• Colour: Black grey RAL 7021
• Suitable For: Li-Ion battery charging
• Finished Coating: Powder coated
• Material & Thickness: 1.5mm
• Quantity Of Keys: 2 keys
