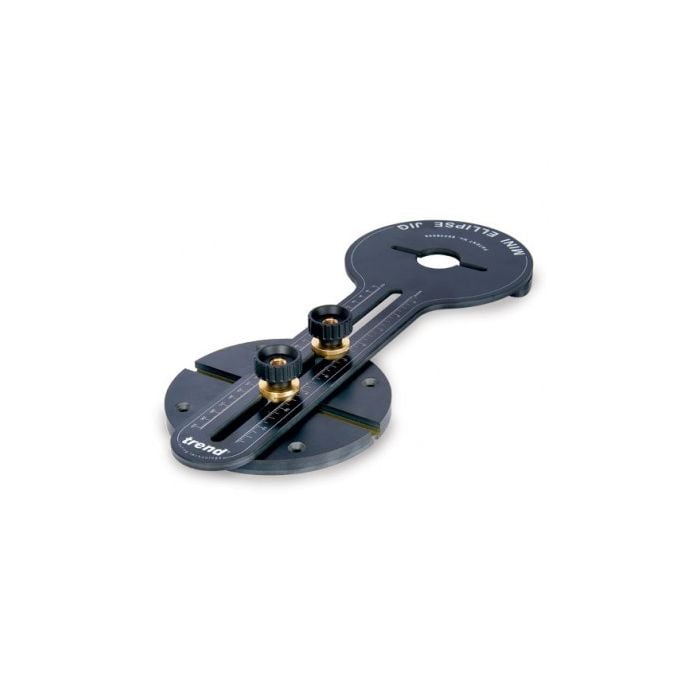

Trend ME/JIG Mini Ellipse Jig set

The Mini Ellipse Jig is ideal for routing elliptical picture frames, mirrors, clocks and small coffee tables.
Working on the same principle as the Ellipse Jig, the Mini Ellipse Jig, produced from plastic will cut much smaller ellipses.
The main plate will accept most makes of small router for which screws are provided.
By removing one slide and using a special pin, the jig can be used to accurately cut circles.
For marking out prior to cutting, the plate can be fitted with a pencil plug. The jig is then turned into a drawing instrument.


Specification-

Ellipse major axis =580 mm
Ellipse minor axis max=520 mm
Ellipse minor axis min=430 mm

Ellipse major axis =500 mm
Ellipse minor axis max=450 mm
Ellipse minor axis min=360 mm

Ellipse major axis =400 mm
Ellipse minor axis max=340 mm
Ellipse minor axis min=250 mm

Ellipse major axis =300 mm
Ellipse minor axis max=250 mm
Ellipse minor axis min=160 mm

Ellipse major axis =220 mm
Ellipse minor axis max=160 mm
Ellipse minor axis min=160 mm

Circle dia. min.=160 mm
Circle dia. max.=600 mm
