Trend LOCK/JIG Lock Jig
£89.99
£74.99
SKU: TRELOCK-JIG | EAN: 5027654521731
You may also need these
what's in the box
- 1x Guide Bush Collar
- 12x Face Plate Templates
- 4x Mortise Templates
- 6x Spacer Fingers
Notes From PTW Expert
Other sizes of template available to special order, please contact Trend Technical Support for more information
Overview

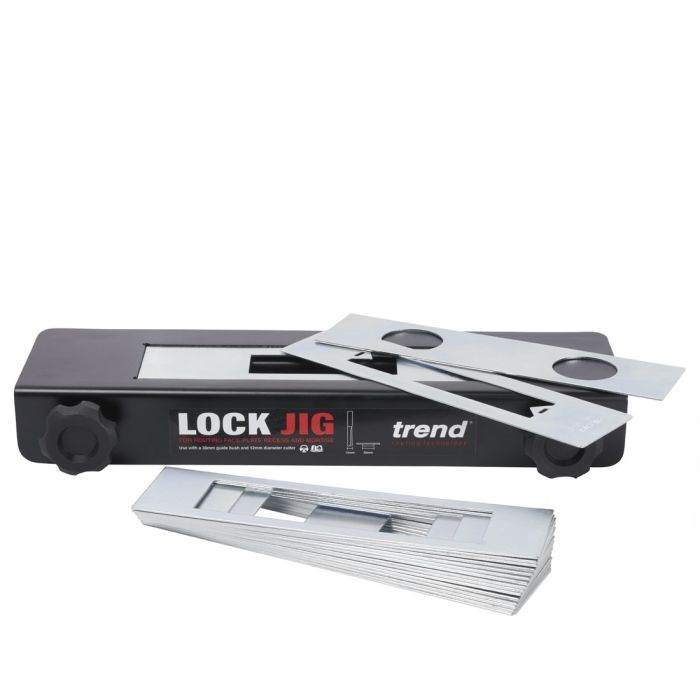

Trend LOCK/JIG Lock Jig
FEATURES
- This jig uses a set of interchangeable templates & with a router will cut the mortise & face-plate recess for popular door locks
- For most common sash mortises & dead locks, with up to 3 inch deep mortises & a 7/8 inch or 1" face-plate
- Deeper mortises can be achieved with a suitable size of auger bit
- Fast, clean & accurate results on doors 34mm to 58mm thick, even in hardwood
- Steel plates & body
- The jig requires a plunge router with a 80mm plunge, fitted with a 30mm guide bush with 6mm spigot & 12mm diameter long reach cutter
SPECIFICATION
- Includes templates for locks having the following face-plate dimensions:
- Imperial (Metric): Template
- 7/8"x 1/8" (22.2x156 mm): 1
- 7/8"x 6 " (22.5x152.5 mm): 2
- 1"x 4 3/4" (25.4x121 mm): 3
- 1"x 5" (25.4x127.5 mm): 4
- 1"x 5 1/4" (25.4x133.5 mm): 5
- 1"x 5 3/4" (25.4x145 mm): 6
- 1"x 6" (25.4x153 mm): 7
- 1"x 6" (25.4x156.5 mm): 8
- 1"x 6 1/2" (25.4x165.5 mm): 9
- 1"x 7" (25.4x177 mm): 10
- 1"x 2 1/4" (25x57.5 mm): 11 UPPER
- 1"x 2 1/4" (26x56.5 mm): 11 LOWER
- 1"x 6 3/8" (25.6x162mm: 12
MORTISE DIMENSIONS
- Imperial (Metric): Template
- 5/8" x 2 7/8" (16x72 mm*+): A
- 5/8" x 4 1/4" (16x107 mm*): B
- 3/4" x 3 1/8" (19x78 mm*): C
- 3/4" x 4 1/4" (19x109 mm*): D
- *These are maximum mortise lng., unless radius ends are squared with a chisel
- +Note:actual size of mortise 16x79 mm (5/8" x 3 7/64")
