Trend COMBI1002 Worktop Jig 1000mm

Trend COMBI1002 Worktop Jig 1000mm

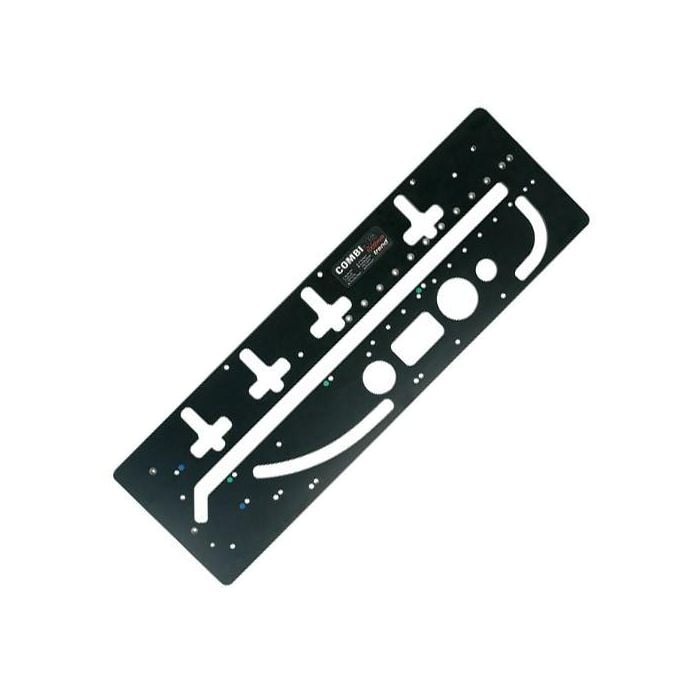

The Trend COMBI1002 Worktop Jig is for up to 1000mm wide worktop now with cable tidy insert & circular hinge cut apertures.

FEATURES

• A single male and female template in 16mm solid laminate
• Facility to join boards from 450mm to 1000mm wide
• Facility to cut 22.5 degree mitre corners for hob units
• Three alloy location bushes and a width-setting stop
• Colour coded pin location for quick and easy use
• Four bolt recess slots for connection bolts, to allow three bolts in 600mm wide worktop
• Cuts out of square joints (max. 3 degrees)
• Guide bush and cutter checker
• 35mm hole for 3/4" BSP mixer tap, and two 25mm holes for bridge (bed) mixer tap at 180mm centres
• Jig requires:
• A portable plunge router with 12.7mm (1/2") shank capacity and minimum 1300 watts
• A template guide bush with 30mm outside diameter ref. GB30
• A TCT router cutter with 12.7mm (1/2") diameter and 50mm (2") cut length
• Two 100mm (4") throat clamps

SPECIFICATION

• Length: 1200 mm
• Width: 376 mm
• Thickness: 16 mm
• Female Cut Material Width Loss (inset): 23 mm
• Weight: 9.6 kg
• End Cut: 45 degrees
• Corner Mitre Joint: 22.5 degrees
• Peninsula Radius Approx: 410 mm
• Corner Radius Approx: 75 mm
• Circular Hinge Diameter: 35 mm
• Out of Square Max: 3 degrees
• Guide Bush: 30 mm
• Plunge Router: 1/2" (min 1300 watts)
• Cutter: 12.7 x 50 mm cut
