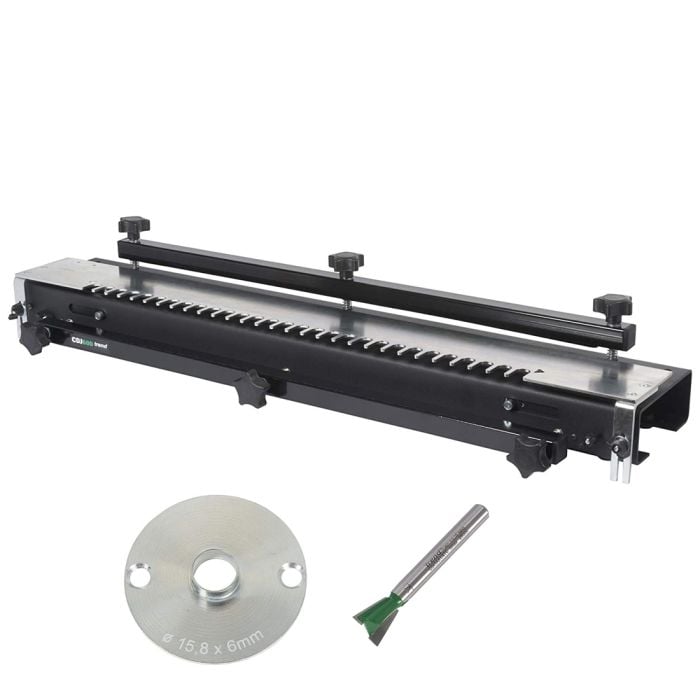

Trend CDJ600 Craft Dovetail Jig 600mm

Trend CDJ600 Craft Dovetail Jig 600mm

An accurate and easy to use Dovetail Jig for a variety of elegant dovetail joints.
Cuts 12.7mm (1/2 inch) wide half blind dovetails or rebated dovetails in one operation.
Precision made laser cut zinc plated steel template with packing pce.
Adjustable offset stops.
A Unibase and fine height adjuster may be required for certain makes of router.
A range of accessory templates are available for box joint, dowel and through dovetails.

Specification-

Rating=Craftsman
Dovetail size=12.7 mm
Workpce width max.=600 mm
Workpce thickness min.=12 mm
Workpce thickness max.=25 mm
Guide bush size=15.8 mm
Router base dia. max=180 mm
