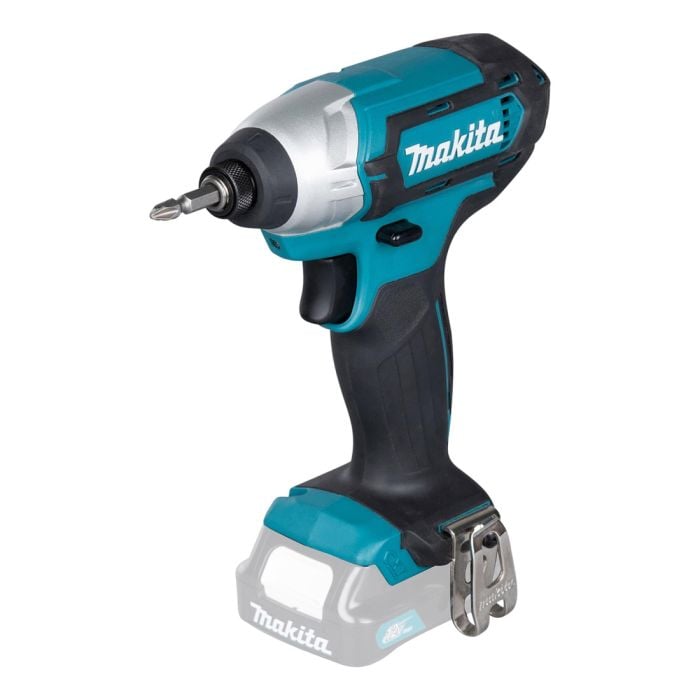

Makita TD110DZ 12v MAX CXT Slide Impact Driver Body Only

Makita TD110DZ 12v MAX CXT Slide Impact Driver Body Only

The Makita TD110DZ is part of the CXT range of 10.8v tools with the slide type Li-Ion battery and higher speed and torque, supplied as a body only unit no batteries, charger or carry case.

The TD110D is a compact and lightweight impact driver with a maximum torque of 110Nm and maximum speed of 2,600 RPM. Features include a rubber moulded handle, LED light with afterglow feature and an electric brake that stops rotation almost immediately. The TD110D has a rubber moulded handle for a firm grip and a ¼” single sleeve chuck for rapid bit changeover.

CXT (Compact eXtreme Technology) batteries have higher battery capacity, a battery protection circuit that protects against overloading and overheating and are durable in low temperatures up to -20°C. Multi contact slide type terminals ensure stable contact even under vibration and a 4 stage LED battery fuel gauge displays remaining charge.

FEATURES

• New CXT 'Slide' type Lithium-ion battery style
• Electric Brake
• Variable speed by trigger
• Higher rotation speed
• High power - More torque than TD090D
• Battery protection circuit
• Forward/reverse rotation
• LED job light
• Ergonomic grip
• Belt clip

SPECIFICATION

• Voltage: 10.8v / 12v MAX
• Max Torque (Nm): 110
• Brake Type: Electric
• LED Job Light: Yes / Pre-glow & After-glow
• Battery Capacity Indicator: No
• Battery Compatibility: 10.8v Lithium-Ion (CXT Slide)
• Rotation: Forward & Reverse
• Variable Speed Control Trigger: Yes
• No Load Speed (RPM): 0-2600
• Machine Screw Capacity: M4-M8
• Standard Bolt Capacity: M5-M12
• High Tensile Bolt Capacity: M5-M10
• Coarse Thread Length Capacity (mm): 22-90
• Max. Impacts Per Minute (ipm): 0-3500
• Driving Shank: 1/4" Hex
• Overall Length (mm): 153
• Net Weight (Kg with 1.5/2Ah Battery): 1.0
• Net Weight (Kg with 3/4/5Ah Battery): 1.2
• Brushless Motor: No

NOISE & VIBRATION

• Sound Pressure Level (LpA): 94 dB (A)
• Sound Power Level (LWA): 105 dB (A)
• Sound Uncertainty (K): 3 dB (A)
• Vibration Emission (ah) (Using Max Capacity of Tool): 8.0 m/s²
• Vibration Uncertainty (K): 1.5 m/s²
