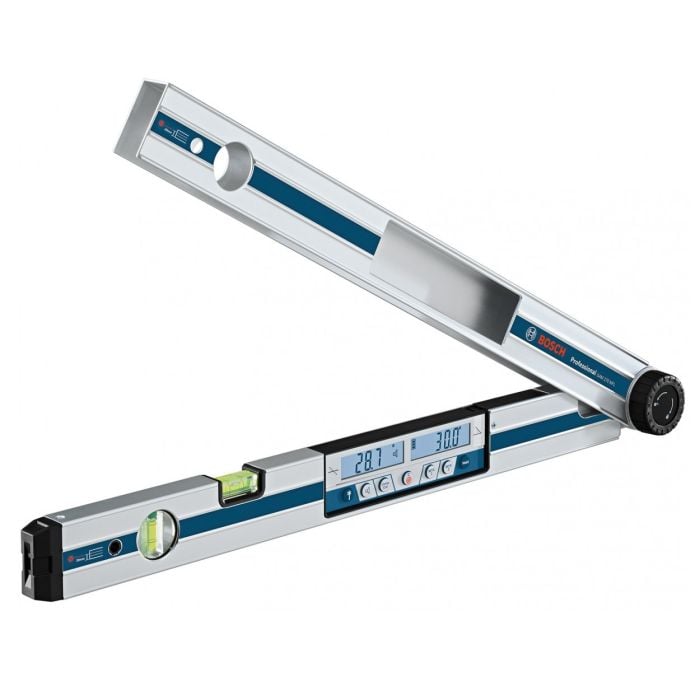

Bosch Professional GAM 270 MFL Digital Angle Measuring Tool 0601076400

Bosch GAM 270 MFL Professional Digital Angle Measurer 0601076400

Angle meter and inclinometer with laser-accurate transfer

The Bosch GAM 270 MFL Digital Angle measurer and Inclinometer is five tools in one: a digital angle measurer, an inclinometer, a mitre cut calculator, a protractor and a digital level. The angle measurer provides accurate angle targets, while the inclinometer offers precise measurements in degrees.

The tool is also equipped with an integrated laser, allowing the user to transfer inclination measurements up to 100 ft. The tool has two easy-to-read illuminated, flip displays, one for the inclinometer and one for the angle measurer. Users are able to easily reuse and transfer save measurements with the hold function.

The cut calculator provides easy saw angle adjustments and a compound mitre calculator. Users can find the mitre angle using the tool's legs, which have an angle range of 0-270°. The compound mitre calculator is used to measure joint angles that are not perpendicular.

The tool has clearly labeled buttons for straightforward calculations and robust housing with IP 54 ultimate protection.

FEATURES

• Five tools in one: digital angle measurer, inclinometer, mitre calculator, protractor and level
• Optimum readability due to rotating, illuminated display
• Hold function for holding and transferring the measuring result at the press of a button
• Stores angle and inclinometer measurements in memory for repeated use
• Precise angle transfer due to mechanical locking screw
• Robust and compact design with IP54 protection
• No calibration required
• Digital angle measurer and inclinometer in one
• Digital angle measurer delivers accurate angle targets
• Calculates mitre angles without the need for accessories
• Inclinometer with laser up to a range of 30 m

SPECIFICATION

• Measurement Range: 0 - 270°
• Simple Mitre Cut Input Angle Range: 0° – 220°
• Compound Cut Input Angle Range: 0° – 180°
• Measurement Accuracy, Angles: ± 0.1°
• Leveling Accuracy (Vial): +/- 0.05°
• Power Supply: 4x 1.5V AA
• Battery Power, Approx.: 50 h
• Automatic Deactivation Facility, Approx.: 30 mins
• Arm Length: 60 cm
• Leg Extension Length: 40 cm
• Leg Extension Range: 0 — 17 cm
• Weight, Approx.: 1.7 kg
• Material: Aluminum
• Length: 684 mm
• Width: 52 mm
• Height: 60 mm
